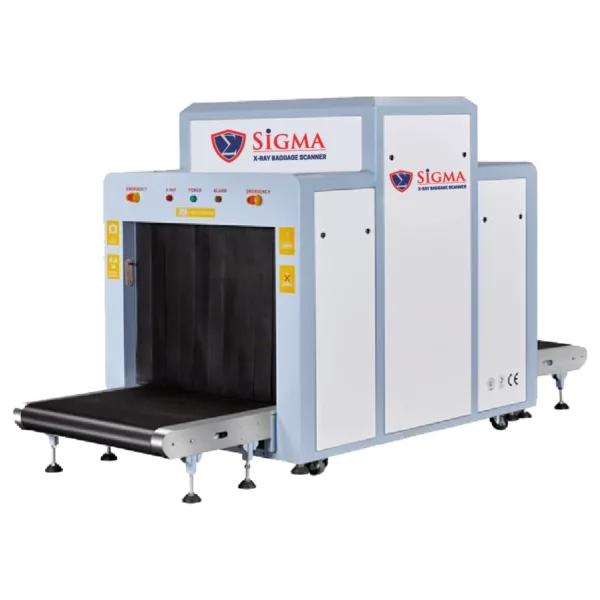

Description

General Specifications

• Tunnel Size: 1005*1000mm
• X-ray Sensor: Multi-energy
• Max. Load: 250 kg (Evenly distributed)
• Conveyor Speed: 0.22m/s
• Conveyor Height: 370mm
• Image Resolution: 21.5″ LCD 1920*1080
• System Noise: <58 dB
• Film Safety: Guaranteed ISO 1600 Film
• System Voltage: 220 VAC (10%) 50+3HZ
• Power Consumption: 0.8kw (Max)

Standard Features

• High Definition Image: Utilizes new generation HD schema design for clear images and stable performance.
• Dynamic Processing: Real-time display with optimization functions like edge enhancement and amplification.
• Image Management: Built-in image management system for quick access to saved images.
• Intelligent Alarm: User-configurable alarm thresholds with acousto-optic alarming for detected impermeable items.
• Green Lead Curtain: Wear-resistant, pollution-free, and durable lead curtain.
• Self-Diagnose: Automatic detection of failures with convenient maintenance prompts.
• Shutdown With One Key: Simple and convenient equipment shutdown with a key rotation.
• Network Interface: Uses a standard Ethernet port for image transmission with rapid processing and strong anti-interference performance.
• Intelligent Roller: The roller automatically rotates when there is luggage on the conveyor belt, saving energy.
• Threat Image Protection: Fully configurable by high-level users for threat type, projection frequency, and more.

Compliance

• CE compliance
• Directive 2004/108/EC Electromagnetic
• Directive 2006/42/EC Machinery
• Directive 2006/95/EC Low Voltage
• ISO9001 Quality Management System
• ISO14001 Environment Management System
• OHSAS18001 Occupational Health Management System

Applications

Ideal for use in hotels, checkpoints, shopping malls, customs facilities, ports, gyms, warehouses, railway stations, express services, and more.
