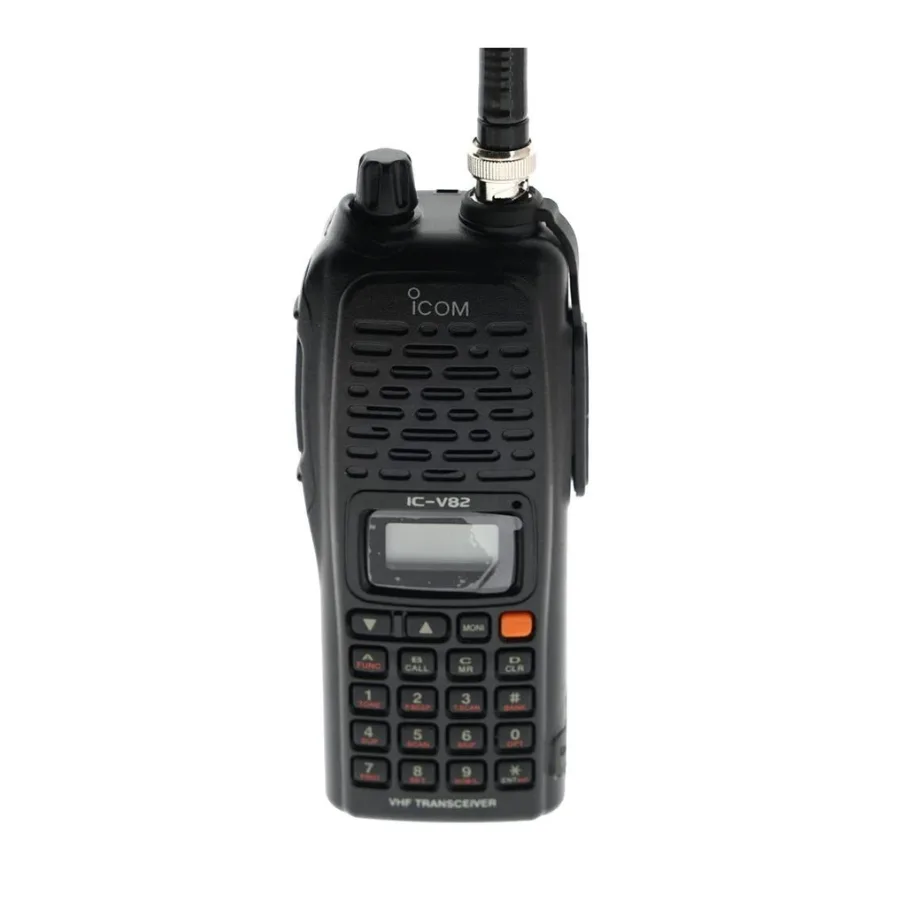

Description

More Digital Features:

• 20-character short data message
• Digital code squelch
• EMR communication
• Digital pocket beep
• Stand-by beep

7W Powerful Output Power: A powerful 7W output power provides superior transmit power. All this power is available with the supplied battery pack. Reduced power settings also allow you to adapt to the communication conditions and provide longer operating time.

200 Memory Channels and 10 Memory Banks: Up to 200 regular memory channels can be stored with a 6-character channel name, tone, and duplex settings. The memory channels can be tagged with A-J bank names, allowing easy channel management. Additionally, use Icom’s exclusive DMS (Dynamic Memory Scan) system to scan selected memory banks by simply adding and deleting bank links.

Built-in CTCSS/DTCS: Built-in CTCSS/DTCS tone codes provide quiet standby and allow you to access a closed repeater. The pocket beep alerts you when a matched tone frequency is received. The tone scan detects the tone frequency used in the receiving signal.

Standard DTMF Encoder and Optional DTMF Decoder: 5 DTMF memory channels with up to 24 DTMF codes allow remote operation. The optional UT-108 DTMF decoder unit provides code squelch operation as well as a pager function.

Specifications: General:

• Frequency range:
  • Tx: 136-174 MHz
  • Rx: 136-174 MHz (Guaranteed range 144-148 MHz)
• Mode: FM (F3E, F2D)
• Number of memory channels: 207 (including 6 scan edges and 1 call)
• Frequency stability: ±2.5 ppm (-10°C to +60°C)
• Operating temperature range: -10°C to +60°C; +14°F to +140°F
• Power supply: 7.2 V DC (6.0-10.3 V DC acceptable; Icom’s battery pack only)
• Current drain (at 7.2 V DC):
  • Tx: High (7 Watts) 2.6A, Low 0.5W
  • Rx: Max. audio 250mA, Standby 80mA, Power save 30mA
• Usable temperature range: -10°C to +60°C; +14°F to +140°F
• Dimensions (projections not included): 54(W) × 139(H) × 36.7(D) mm, 21⁄8(W) × 515⁄32(H) × 17⁄16(D) in.
• Weight: 390g; 13.8oz (with BP-222N)

Transmitter:

• Output power (at 7.2 V DC):
  • High: 7.0W
  • Mid: 4.0W
  • Low: 0.5W
• Spurious emissions: Less than -60 dB
• Max. frequency deviation: ±5 kHz/±2.5 kHz (Wide/Narrow)
• External mic. connector: 3-conductor 2.5(d) mm (1⁄10″)/2.2k ohm

Receiver:

• Receive system: Double-conversion superheterodyne
• Intermediate frequencies: 1st 46.35 MHz, 2nd 450 kHz
• Sensitivity (at 12dB SINAD): 0.16 µV typ.
• Squelch sensitivity (at threshold): 0.11µV typ.
• Selectivity: More than 55/50dB (Wide/Narrow) typ.
• Intermodulation: 65dB type.
• Spurious and Image rejection: 80dB (typical)
• Audio output power: 300 mW typ. with an 8 ohm load
• External speaker connector: 3-connector 3.5 (d) mm (1/8″)/8 ohm
• External Data connector: 3-connector 2.5 (d) mm(1/10″)

Applicable U.S. Military Specifications: Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows:

• Low pressure
• High temp.
• Low temp.
• Temp. shock
• Solar Radiation
• Rain
• Humidity
• Salt fog
• Dust
• Vibration
• Shock

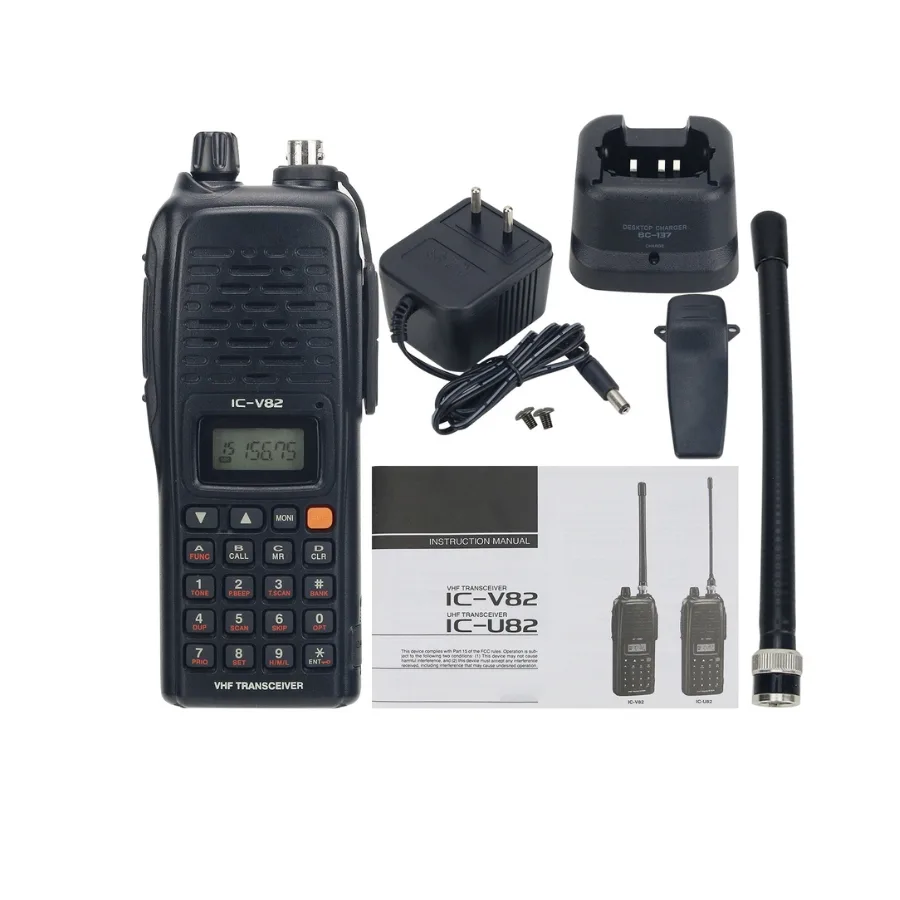

Package Contents:

• 1x IC-V82 VHF FM Transceiver 136-174MHz
• 1x BNC Antenna
• 1x Belt clip
• 1x AC adapter
• 1x ICOM BC-146 Desktop charger
• 1x ICOM BP-209N 7.2V 1100mAh battery pack
• 1x English Instruction Manual
