Description

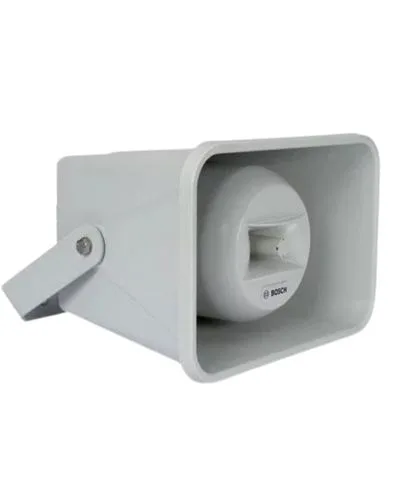

LH1-UC30E Horn loudspeaker Information
- Excellent speech and music’s reproductions
- Two‑way systems
- Attractive-ABS housings
- Provisions for internal mountings of the optionally line. loudspeakers supervisions boards
- EN-54‑24 Certifies
Key Specifications
Color | Gray; Customizes color |
Coverage angles HxV (-6 dB, 1 kHz) (°) | 68 x 100 ° |
Coverage angles HxV (-6 dB, 4 kHz) (°) | 68 x 120 ° |
Dimension (H x W x D) (mm) | 255 x 370 x 354 mm |
Frequency ranges (-10 dB) (Hz) | 212 – 20000 Hz |
IP ratings | IP66 |
Materials | Aluminum; Plastic (ABS) |
Operating’s relative humidity, non-condensing’s (%) | 0 – 95 % |
Operating’s temperatures (°C) | -25 – 55 °C |
Rated input voltages (V) | 70 V; 100 V |
Rated powers (W) | 30 W |
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 100 dB |
Storage temperatures (°C) | -40 – 70 °C |
Weights (kg) | 5.50 kg |
