Description

Description:

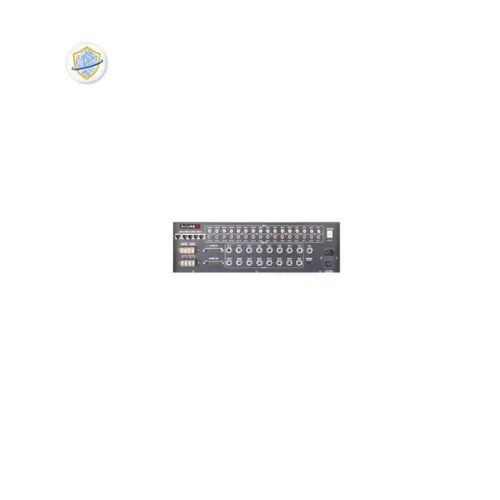

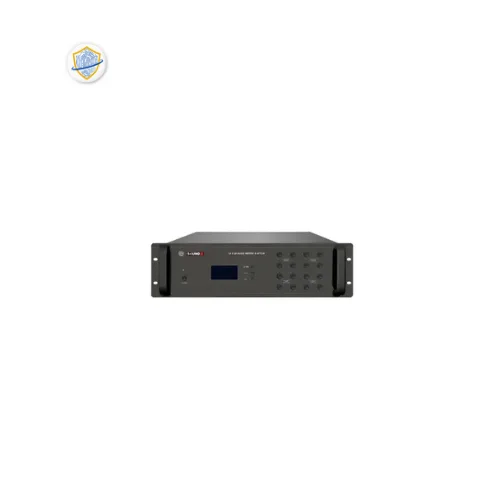

• The SD-MTX16 is a 16-input, 16-output audio matrix controller designed for public address systems.
• It features a powerful audio matrix for distributing multiple sources with scheduled broadcasts.
• The device can be simulated in the UI of D-COM and centrally managed through RS-485.
• It has an LCD display for convenient monitoring and control, as well as a priority bus for zone paging and emergency alarms.

Features:

• A powerful Audio Matrix for distributing multiple sources with scheduled broadcasts.
• Can be simulated in the UI of SD-COM and centrally managed through RS-485.
• 16 audio inputs and 16 audio outputs.
• LCD display for convenient monitoring and control.
• Priority bus for zone paging and emergency alarms.

Specifications for SD-MTX16

Input:

• 16 channels: 1 to F inputs, EMC2 (for emergency paging)

Output:

• 16 channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 outputs

Frequency Response:

• 60Hz – 16kHz (+/- 3dB)

S/N:

• NA (Not Applicable)

THD:

• NA (Not Applicable)

Indicators:

• LCD display, power LED

Protection:

• AC Fuse: 0.5A

Power Consumption:

• 15-20 watts

Power Requirements:

• 110-120V or 220-240V AC, 50/60 Hz, 24VDC

Dimensions:

• 133(H) x 483(W) x 390(D) mm

Built-in Dimensions:

• 3 U rack 19 inch

Net Weight:

• 7.1kg

Gross Weight:

• 8.4kg
