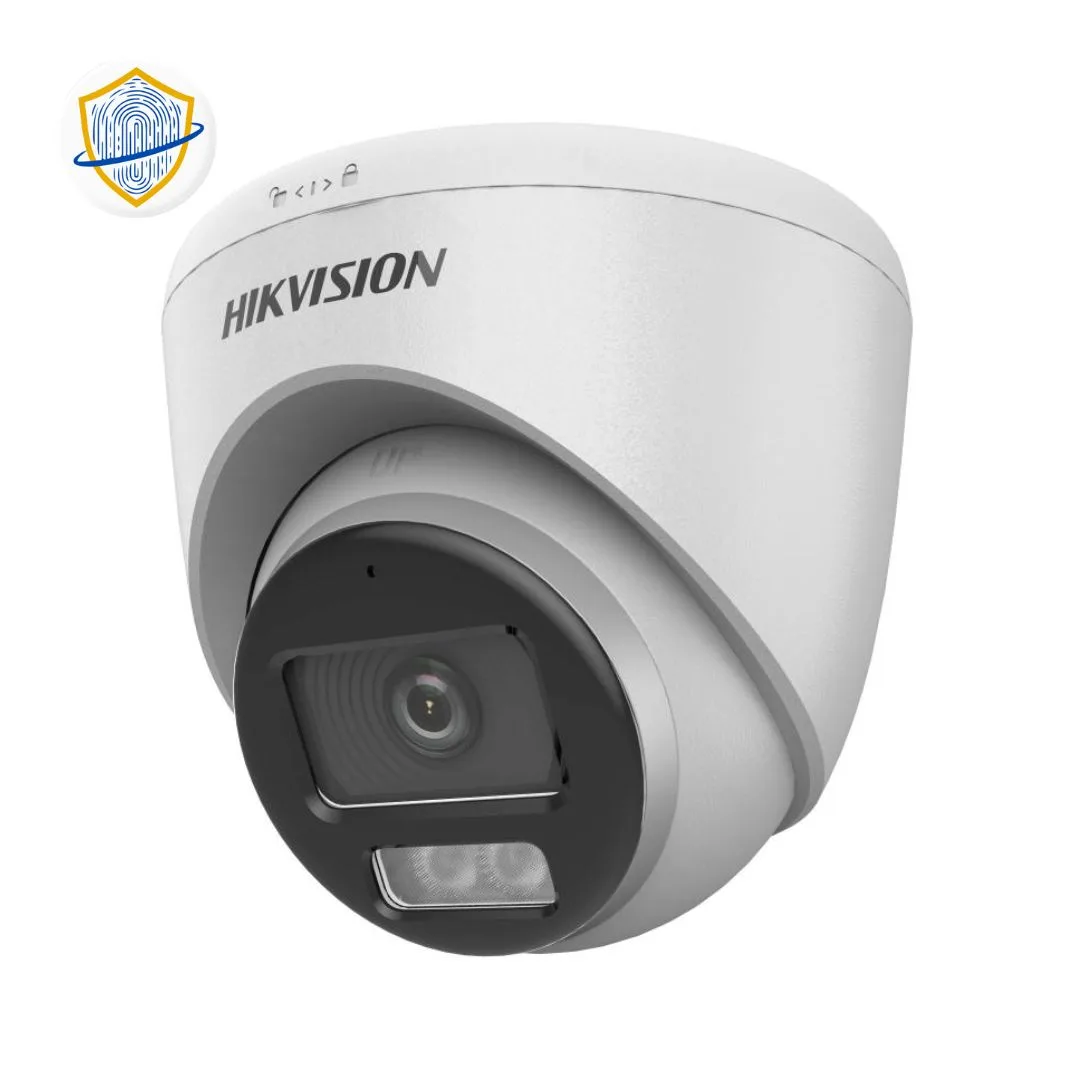

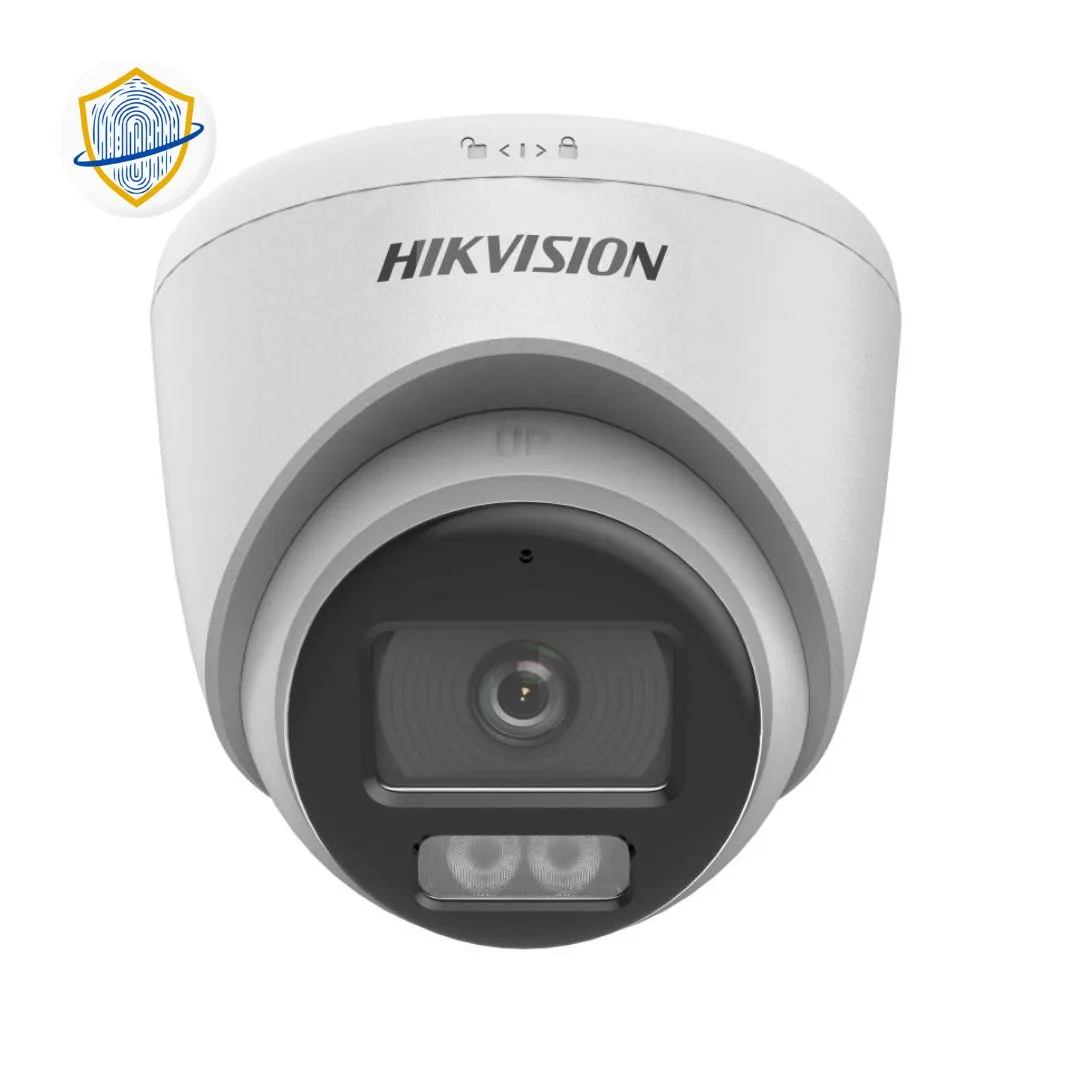

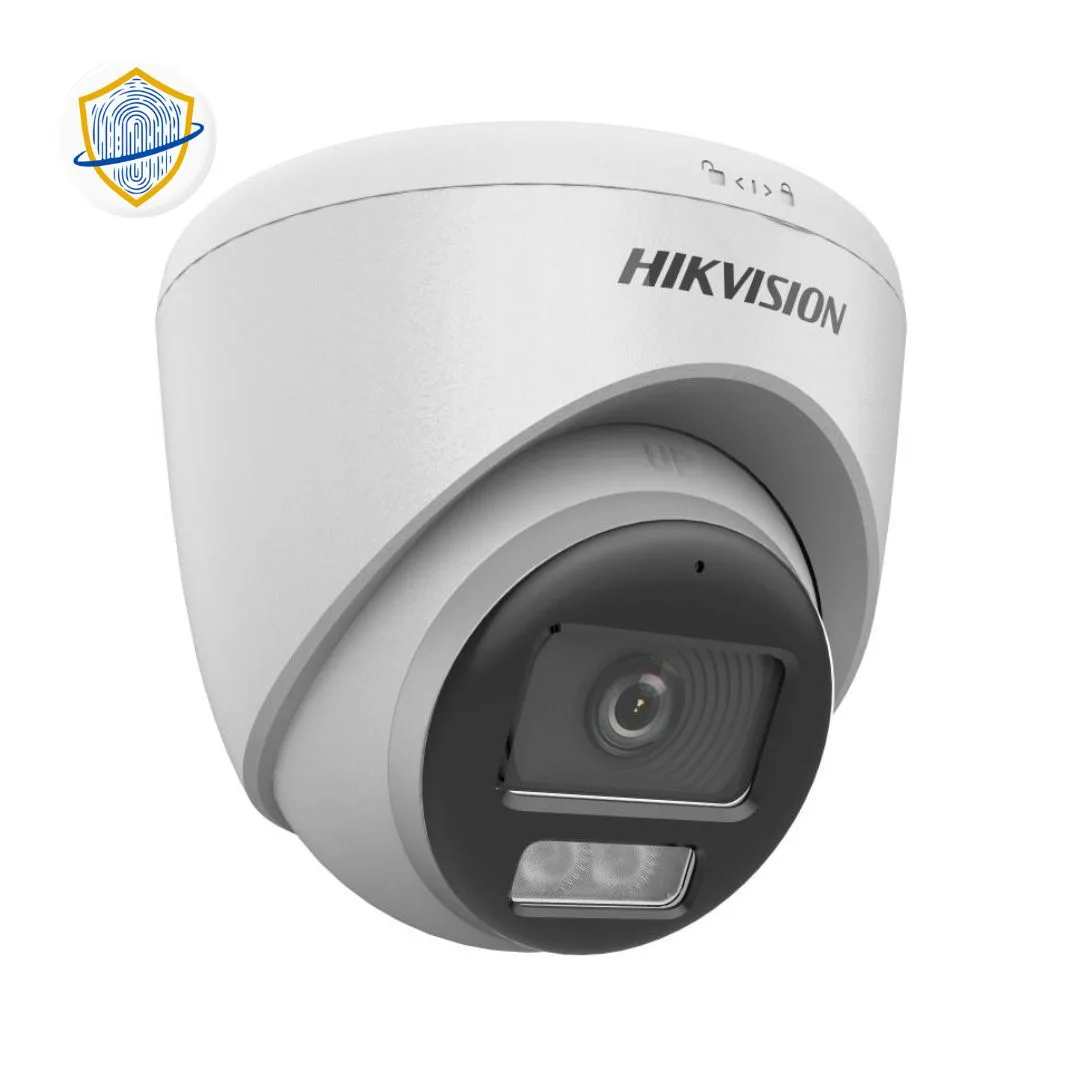

DS-2CE72KF0T-LFS | 3K ColorVu Smart hybrid light Fixed Turret Camera

Camera Specifications

Image Sensor

• Type: 3K CMOS
• Signal System: PAL/NTSC
• Resolution: 2960 (H) × 1665 (V)

Frame Rate

• TVI:
  • 3K @20 fps
  • 4 MP @25 fps/30 fps
  • 1080p @25 fps/30 fps
• AHD:
  • 5 MP @20 fps
  • 4 MP @25 fps/30 fps
• CVI:
  • 4 MP @25 fps/30 fps
• CVBS: PAL/NTSC

Minimum Illumination

• 0.001 Lux: @(F1.0, AGC ON)
• 0 Lux: with white light

Shutter Time

• PAL: 1/25 s to 1/50,000 s
• NTSC: 1/30 s to 1/50,000 s

Lens

• Type: 2.8 mm, 3.6 mm fixed focal lens
• Field of View:
  • 2.8 mm: Horizontal FOV: 110°, Vertical FOV: 60°, Diagonal FOV: 143°
  • 3.6 mm: Horizontal FOV: 94°, Vertical FOV: 50°, Diagonal FOV: 112°
• Mount: M12

Light and Day/Night

• Light Alarm: Solid Light Alarm (White Light)
• Day & Night: ICR
• WDR (Wide Dynamic Range): Digital WDR
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotation: 0° to 360°
• Illuminator:
  • Supplement Light Type: IR, White Light
  • Supplement Light Range: IR: Up to 40 m, White Light: Up to 40 m
• Smart Supplement Light: Yes


• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC (Auto Gain Control): Yes
• Day/Night Mode: Auto
• White Balance: Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode: HLS; DWDR; BLC; HLC; Global
• Noise Reduction: 2D DNR
• Language: English

Function

• Smart IR; Brightness; Sharpness; AGC; Anti-Banding

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio In: Built-in mic

General

• Power: 12 VDC ± 25%, max. 5.2 W (One power adapter recommended per camera)
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Protection Level: IP67
• Material:
  • Enclosure: Plastic
  • Main Body: Metal
• Communication: HIKVISION-C
• Dimensions: Ø109.98 mm × 98.27 mm (Ø4.33″ × 3.87″)
• Weight: Approx. 320 g (0.71 lb.)
