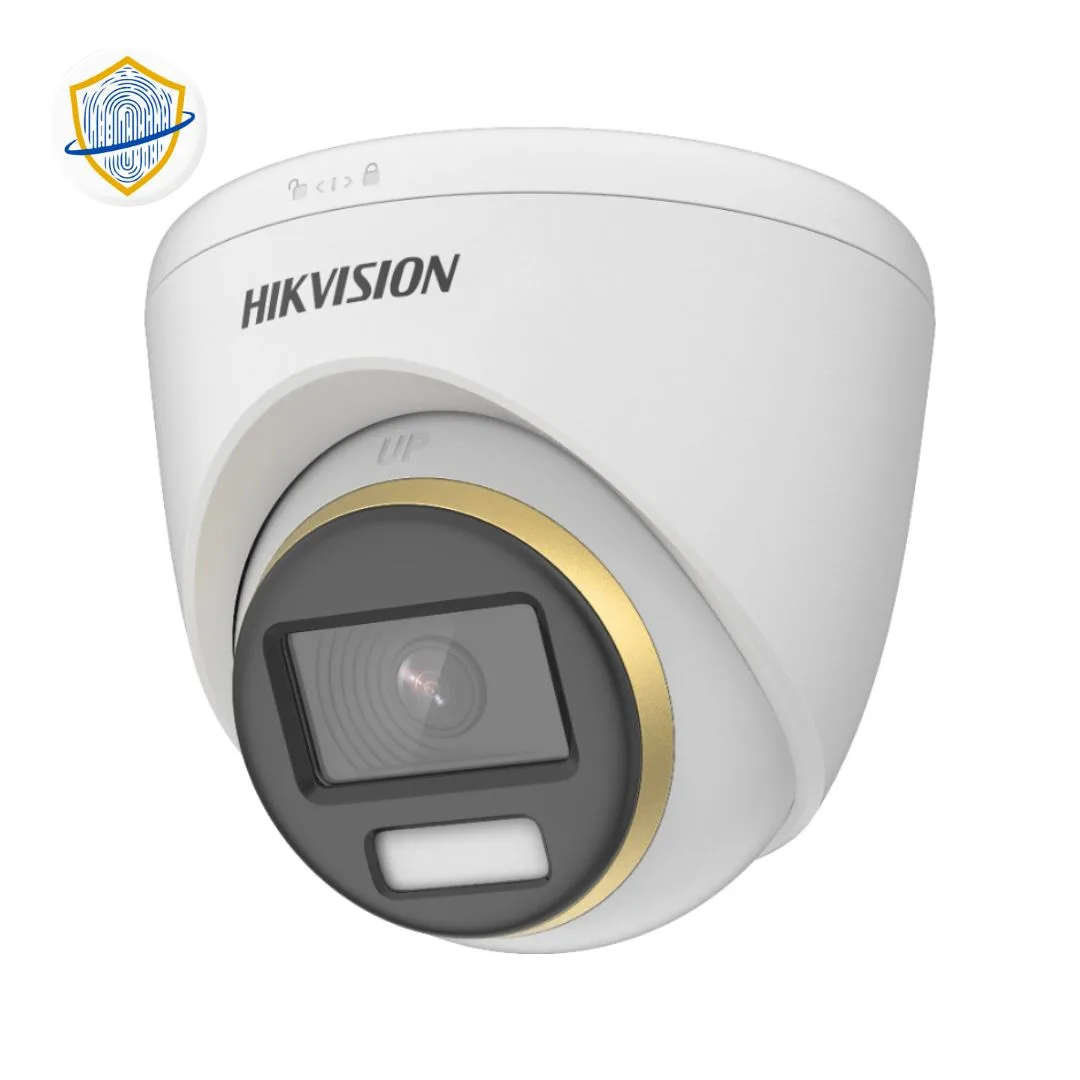

DS-2CE72KF3T | 3K ColorVu Fixed Turret Camera

Description

Camera Specifications

Image Sensor

• Type: 1/1.8″ 3K CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 2960 (H) × 1665 (V)
• Min. Illumination: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s

Light Alarm

• Type: Solid Light Alarm (White Light)

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotation: 0° to 360°

Lens

• Type: 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV: 112°, Vertical FOV: 60°, Diagonal FOV: 133°
  • 3.6 mm: Horizontal FOV: 95°, Vertical FOV: 50°, Diagonal FOV: 115°
• Mount: M16


• Frame Rate: 3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
• Wide Dynamic Range (WDR): ≥130 dB
• White Light: Auto/Off
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto/Outdoor/Global/Manual
• Image Enhancement: WDR;BLC;HLC;Global;HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Anti-Banding;Smart Light;Brightness;Contrast;Mirror

Interface

• Video Output: 1 HD analog output
• Event: Motion Detection (4 programmable motion areas)

General

• Language: English
• Operating Condition: -40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 5.3 W
• Material: Main body: Metal, Enclosure: Plastic
• White Light Range: Up to 40 m
• Communication: HIKVISION-C
• Dimension: Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
• Weight: Approx. 350 g (0.77 lb.)

Note: It’s recommended to use one power adapter for one camera, and use a 2-pin power supply for long-distance power supply.

Approval

• Protection: IP67
