Description

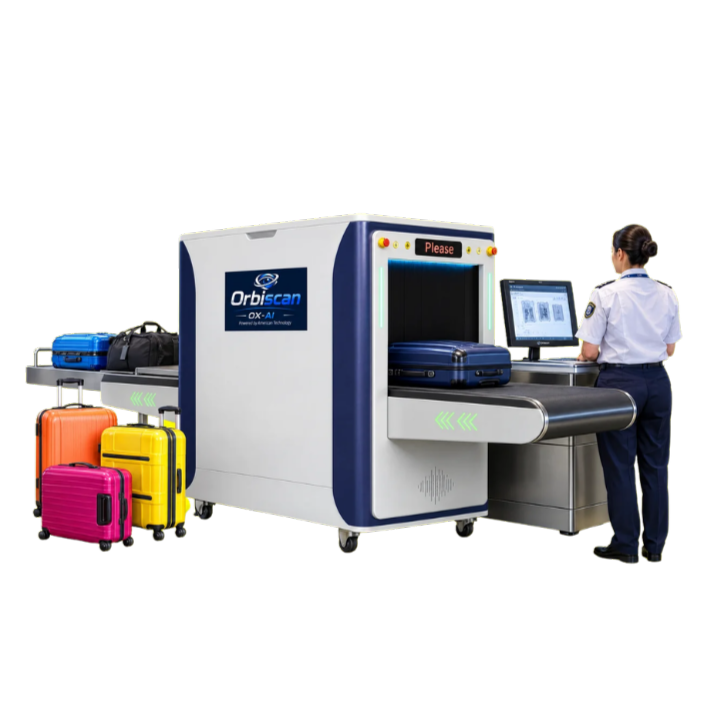

Orbiscan OX-Ai Pro X-Ray Baggage Scanner in Rwanda

The Orbiscan OX-Ai Pro X-Ray Baggage Scanner is a professional 5030 security inspection system designed for reliable screening of luggage, handbags, parcels, and personal belongings at security checkpoints. Featuring a 500 × 300 mm inspection tunnel, high-definition X-ray imaging, advanced image processing, and optional AI-assisted threat recognition, this security scanner supports efficient baggage inspection in demanding environments.

Available through Kigali Smart Solutions Ltd in Kigali, Rwanda, the Orbiscan OX-Ai Pro is suitable for government buildings, corporate offices, hotels, public facilities, VIP security checkpoints, and high-security event venues.

Its professional construction, intuitive operation, and advanced inspection capabilities make it a practical solution for organizations looking for an X-ray baggage scanner in Rwanda.

Technical Specifications

Specification	Details
Brand	Orbiscan
Model	OX-Ai Pro
Product Type	X-Ray Baggage Inspection System
Tunnel Dimensions	500 × 300 mm
Product Dimensions	1765 × 800 × 1180 mm
Net / Gross Weight	280 / 330 kg
X-Ray Tube Voltage	100 / 140 / 160 kV
Tube Current	0.2–1.2 mA, Adjustable
X-Ray Leakage	≤1 μGy/h at 5 cm
Detector	L-Type Photodiode Array
Maximum Conveyor Load	150 kg
Conveyor Speed	Approx. 0.22 m/s
Conveyor Height	720 mm
Steel Penetration	13–38 mm; 15–40 mm typical, as listed in brochure
Wire Resolution	40 AWG; 38 AWG typical
Spatial Resolution	Horizontal and Vertical 1.0 mm
Image Storage	More Than 500,000 Images
Image Display	7 Colors / 4096 Grey Levels
Image Zoom	Up to 64×
Monitor	19-Inch, 1280 × 1024
Operating System	Windows 7 English Version
Power Consumption	Less Than 0.5 kW
Power Supply	110–240 VAC, 50/60 Hz ±3 Hz
Operating Temperature	-20°C to +60°C
Operating Humidity	5–95%, Non-Condensing
Optional AI Recognition	Supported
Optional CCTV Integration	Supported

Key Features of Orbiscan OX-Ai Pro

High-Definition X-Ray Baggage Inspection

The Orbiscan OX-Ai Pro provides detailed X-ray imaging to assist security personnel in inspecting baggage, parcels, and other carried items without opening them.

Its dual-energy detector array and advanced image processing tools support effective screening of different materials.

500 × 300 mm Inspection Tunnel

Equipped with a 500 mm wide × 300 mm high scanning tunnel, the OX-Ai Pro is designed for inspecting small and medium-sized bags, parcels, documents, and personal belongings.

Optional AI-Assisted Threat Recognition

The system supports optional AI-assisted recognition technology to help operators identify potentially suspicious objects during baggage inspection.

The brochure also highlights image analysis assistance for identifying potential explosives and narcotics.

Advanced Image Enhancement

The X-ray imaging software includes:

• High, low, and super penetration imaging
• Organic and inorganic material display
• Seven-color imaging
• 4096 grayscale levels
• Adjustable image zoom
• Image recall and storage
• Image marking and diagnostics
• User and inspection log management

These functions help security operators examine scanned objects more efficiently.

Intelligent Tunnel Display

A built-in 3-inch intelligent tunnel display provides real-time operating information and improves interaction with the security scanner.

Directional LED Indicators

Integrated directional arrow indicators show conveyor movement and operating status, helping personnel manage baggage screening operations.

Efficient Conveyor System

The scanner features a conveyor speed of approximately 0.22 m/s and supports a maximum load of 150 kg.

Its bidirectional scanning capability supports flexible checkpoint operations.

Low X-Ray Leakage Design

The Orbiscan OX-Ai Pro features optimized radiation shielding. The brochure specifies an X-ray leakage dose of ≤1 μGy/h measured at 5 cm.

Optional CCTV Integration

Optional CCTV monitoring and camera integration can support centralized security operations and additional inspection oversight.

Customization and Connectivity

The system supports selected customization and integration options, including interface customization, SDK integration, image export, and additional language configurations.

Applications of the Orbiscan OX-Ai Pro in Rwanda

The OX-Ai Pro is suitable for security inspection in a variety of environments.

Government Buildings and Public Institutions

Screen handbags, parcels, and personal belongings at controlled entry points.

Corporate Offices and Business Centers

Support professional visitor and employee baggage screening at office entrances.

Hotels and Hospitality Facilities

Inspect guest luggage and carried items at designated security checkpoints.

VIP and Diplomatic Security

Support screening procedures at diplomatic facilities, executive offices, and high-security reception areas.

Events and Conference Venues

Provide baggage inspection for conferences, exhibitions, and high-security events.

Mailrooms and Parcel Screening

Inspect documents, parcels, and smaller packages entering commercial or institutional facilities.

Why Choose Orbiscan OX-Ai Pro?

The Orbiscan OX-Ai Pro combines high-definition X-ray inspection, advanced image enhancement, efficient conveyor operation, and optional AI-assisted recognition in one professional screening system.

Its compact 5030 tunnel configuration makes it suitable for facilities requiring baggage and parcel inspection without the larger tunnel size of industrial security scanners.

Buy Orbiscan OX-Ai Pro X-Ray Baggage Scanner in Kigali, Rwanda

Looking for an X-ray baggage scanner in Kigali, a 5030 security inspection machine in Rwanda, or professional baggage screening equipment for your facility?

Kigali Smart Solutions Ltd supplies professional security screening equipment and inspection solutions for commercial businesses, government institutions, security companies, and organizations across Rwanda.

Contact Kigali Smart Solutions Ltd to request the latest pricing, product availability, technical details, and a quotation for the Orbiscan OX-Ai Pro X-Ray Baggage Scanner.



Product Brochure: OX-Ai pro.pdf
