Description

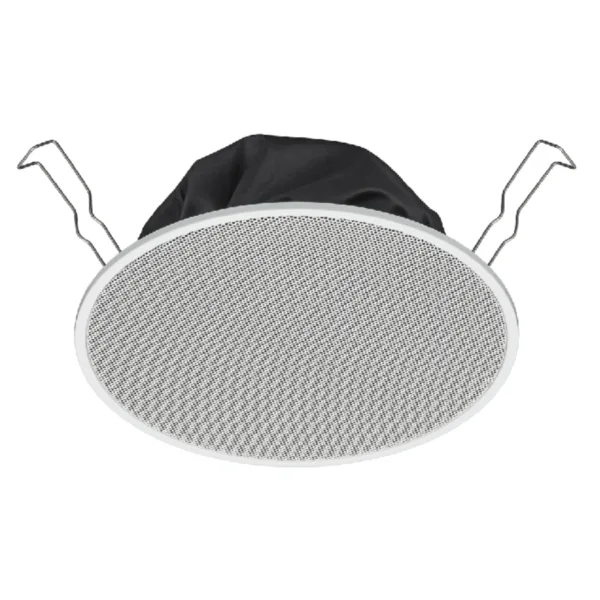

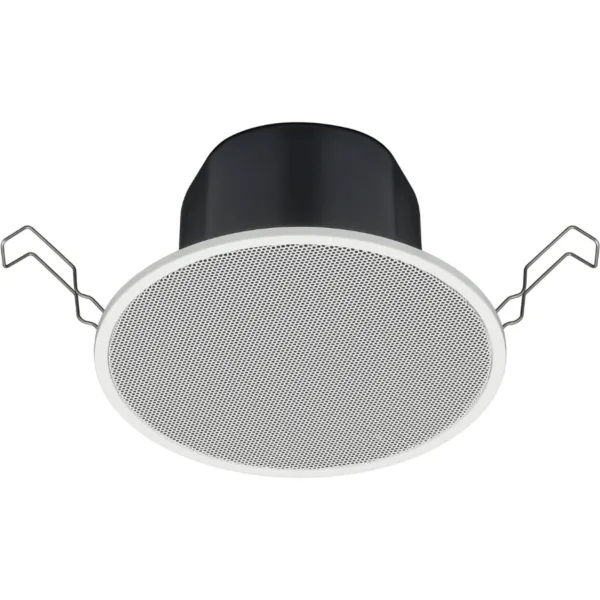

PC-2360 Ceiling-Mount-Speaker All metallic construction, ideal for use in a voice alarm system or BGM system. It features a spring clamp mechanism for easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connection easy and allows bridge wiring.
PC-2360 Ceiling-Mount-Speaker Details
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 110V line: 1.7 Ω (6 W), 3.3 kΩ (4W), 6.8 kΩ (1.5 W), 14 kΩ (0.7 W) 70 V line: 1.6 kΩ (3 W), 3.4 kΩ (1.5 W), 6.6 kΩ (0.8 W), 12 kΩ (0.4 W) |
| Sensitivity | 95 db (1 W, 1 m) (500 Hz – 6 kHz, pink noise. …) |
| Frequency Response | 65 Hz – 20 kHz |
| Speaker Component | 17cm (6″) …. .cone-type |
| Operating Temperature | -10 °C to + 50 °C (14 °F to 122 °F) |
| Dimensions for Fixing Hole | hole: φ200±3 mm (φ7.87″±0.12″) Ceiling thickness: 5 – 35 mm (0.3″ – 0.88″) |
| Speaker Mounting Method | Spring clamp |
| Applicable Cable | Solid wire: 0.6 – 2mm² (AG 20 – 12) |
| Connection | Push wire ( terminal-2 branch) |
| Finish | Steel plate, (RAL 9026 equivalent), paint Grille: Steel , white (RAL 9026 equivalent), paint |
| Dimensions | φ330 × 76 (D) mm (φ9.07″ × 2.89″) |
| Weight | 750 g (1.63 lb) |
| Accessory | Paper pattern …2 |
