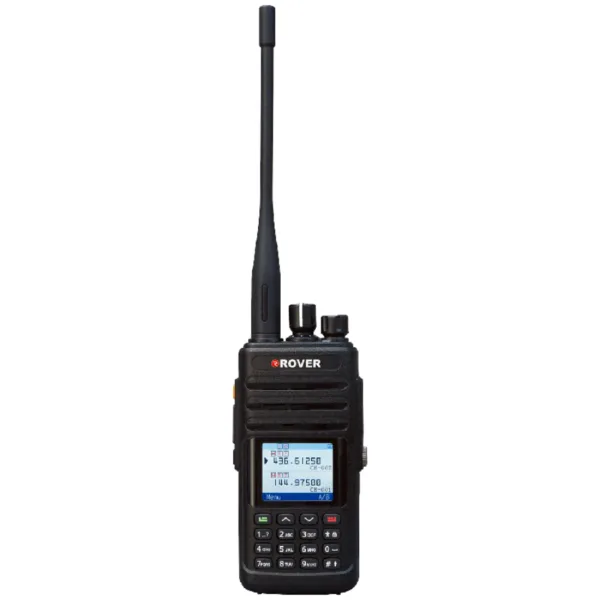

Rover Walkie Talkie R-5WP

These specifications provide an overview of the General Rover Walkie Talkie R-5WP, outlining its frequency range, channel capacity, power settings, and modulation type.

Key Features

Frequency Bands:
UHF: 430-440 MHz
VHF: 144-146 MHz
Output Power: 10W
Channels: 256
Battery:
Capacity: 3600mAh
Voltage: 7.2VDC
Audio:
DTMF Encoding/Decoding
FM Radio Function
Dimensions: 120x55x33mm
Weight: 235g
Waterproofing: Yes

SKU: R-5WP Categories: , ,

Description

General Rover Walkie Talkie R-5WP Overview:

  • Frequency Range: VHF & UHF
  • Frequency Stability: ±2.5ppm
  • Channel Capacity: 256 channels
  • Operating Voltage: DC 7.2V
  • Antenna: High-gain antenna
  • Mode of Operation: Same or different frequency simplex
  • Dimensions (H x W x D): 121 x 59 x 34mm

Transmitter Specifications:

  • RF Power: High ≤10W, Low ≥ 5W
  • Modulation Type (Wide/Narrow Band): 16KF3E / 11KF3E
  • Max Frequency Deviation (Wide/Narrow Band): ≤ 5KHz / ≤ 2.5KHz
  • Adjacent Channel Power: ≤ -65dB / ≤ -60dB
  • Spurious Power: ≤ 7µW
  • Pre-emphasis Character: 6dB for each frequency doubling the increment
