Description

Description

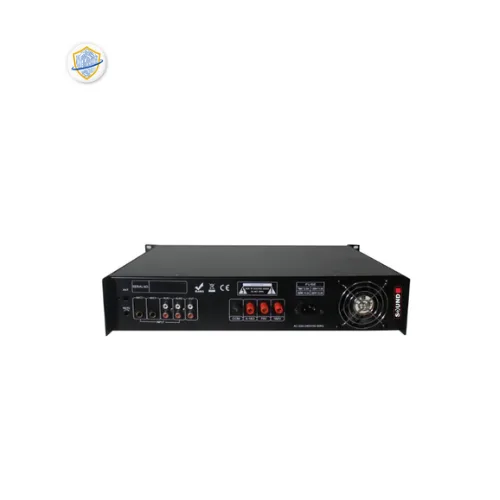

Highly flexible mixer amplifiers available at 70, 130, 260 and 360W RMS power and equipped with all necessary microphone and aux inputs for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.

SPECIFICATIONS

• Output Regulation               Less than 3 dB (no load to full load)
• Frequency Response         60 – 15,000 Hz, +/- 3dB
• THD                                            Less than 0.5% at 1kHz (1/3 Rated Power)
• S/N Ratio                                  Better than 73dB
• Tone Controls                        BASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB)
• Controls                                    5 input gain, 1 treble, 1 bass, 1 mute, and power switch
• Cooling                                     Internal 12VDC fan, extensive heat sinking
• Indicators                                Power indicator LED, LED output level meter 0, 2, 4, 6, 8, 10dB
• Power Requirments         220-240V AC, 50/60 Hz
• Dimensions                          89(H) x 483(W) x 366(D) mm
• Built-in Dimensions         2 U rack 19 inch
• Net Weight                          10.04kg
