Description

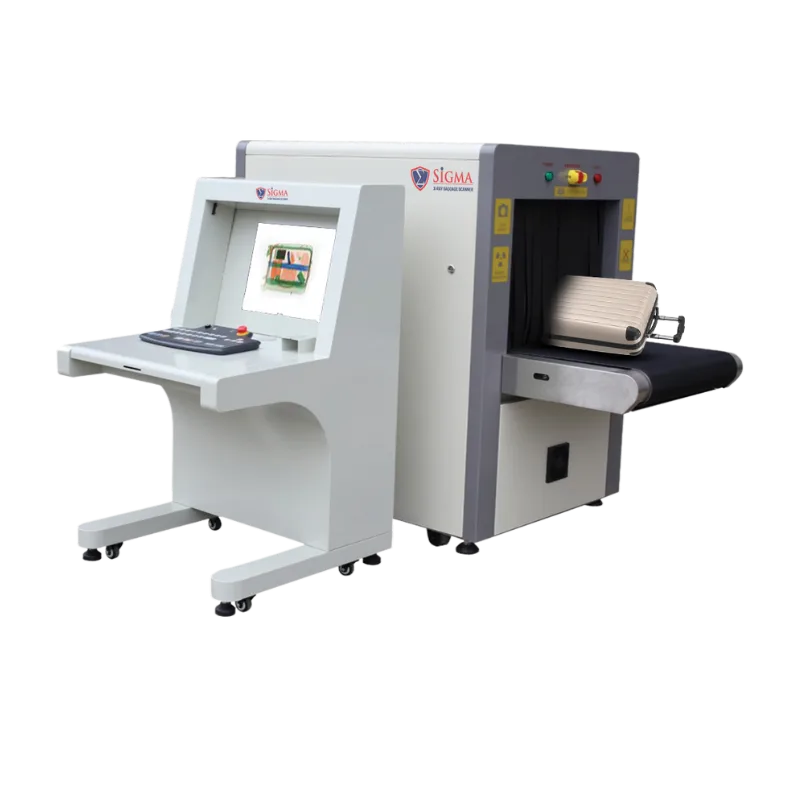

SIGMA SI-6550 X-Ray Baggage Scanner – Advanced Security Inspection System

Technical Specifications

High-Performance X-Ray Scanning Technology

The SIGMA SI-6550 is equipped with a powerful X-ray generator operating between 140–160 KV, providing strong penetration and clear imaging results. The adjustable tube current (0.6–1.2 mA) allows operators to optimize scanning based on object density and inspection requirements.

This ensures accurate detection of prohibited items, weapons, and concealed materials, making it suitable for high-security environments such as airports and government facilities.

Advanced Image Processing System

The SI-6550 features a sophisticated image performance system that enhances detection accuracy through multiple processing modes:

• Pseudo color display for material differentiation
• Edge enhancement for sharper object outlines
• Super image enhancement for improved detail clarity
• High and low penetration display modes for better visibility of dense and light materials
• Dynamic magnification up to 100x for detailed inspection

As highlighted on page 2 of the document, these features enable operators to quickly identify suspicious items and reduce inspection errors.

Efficient Conveyor and Large Load Capacity

The SI-6550 is designed for high-throughput environments with a conveyor speed of 0.22 m/s and a load capacity of 150 kg (evenly distributed).

This ensures smooth handling of luggage and parcels, making it ideal for:

• Airports and transportation hubs
• Logistics and courier centers
• Hotels and commercial buildings
• Government and security checkpoints

The large tunnel size (650 × 500 mm) allows for scanning of medium-sized baggage efficiently.

Reliable and Continuous Operation

With a 100% duty cycle and no warm-up requirement, the SI-6550 is built for continuous use. Its sealed oil cooling system combined with industrial fan cooling ensures stable operation even under heavy workloads.

Additionally, the system includes multiple protection mechanisms:

• Over-voltage protection
• Over-current protection
• Over-temperature protection

These features enhance durability and reduce downtime, ensuring uninterrupted security operations.

Advanced Radiation Safety System

Safety is a critical aspect of any X-ray inspection system. The SI-6550 is designed with multi-layer radiation protection, ensuring compliance with safety standards.

Key safety features include:

• Leakage dose < 0.5 μGy/h (at 5 cm distance)
• Double-layer lead curtain (0.5 mm Pb) at entry and exit points
• 2–6 mm lead plate shielding within the system

These features ensure the device is safe for operators and nearby personnel while maintaining effective scanning performance.

Applications

The SIGMA SI-6550 X-Ray Baggage Scanner is ideal for:

• Airports and transportation hubs
• Government buildings and embassies
• Hotels and commercial complexes
• Logistics and courier centers
• Industrial facilities
• Event venues and security checkpoints

Its high-performance scanning and advanced safety features make it suitable for both public and private sector security operations.

Why Choose the SIGMA SI-6550 X-Ray Scanner

1. High penetration for accurate threat detection
2. Advanced image processing for detailed analysis
3. Continuous operation for high-traffic environments
4. Strong radiation safety compliance
5. Large storage capacity for data management

This makes the SIGMA SI-6550 a dependable solution for modern security screening requirements.
