Description

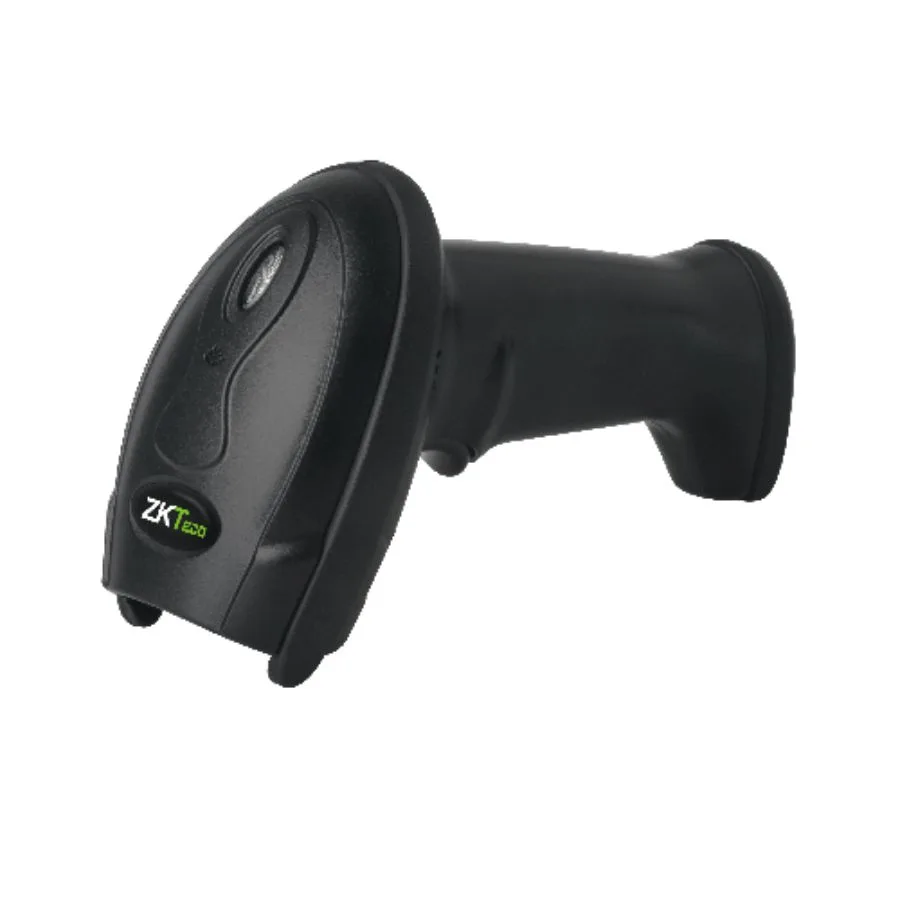

Technical Specifications for ZKB101:

• Kind: 32-bit red laser scanner.
• Types of Bar Code: EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE-128, CODE-93, RSS-Standard, CODE-39, Interleaved 2/5, Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, M: YES, MSI-PLESSEY, CODE-BAR, CODE-11, etc.
• Reading Depth: 0-550mm (with 1.0mm bar code density in tests)
• Reading Angle: Vertical: 70°, Horizontal: 70°
• Precision: >= 3mil
• Decoding Speed: 300 times/second
• Decoding Error Rate: 1/8 million
• Electrostatic Discharge Rate: Download with Contact: 9KV, Air Download: 15KV
• Anti-Fall Protection: 1.8m fall-proof
• Dimensions: 139.5 x 71.1 x 89.9mm (L x W x H)
• Certifications: CE, FCC, ROHS, IP65, IEC60825
• Energy Voltage: 3.5-5.5V DC
• Operating Current: 50mA
• Current at Rest: 25mA
• Peak Current: 100mA
• Ultra-low Energy Consumption: <1mA (rest) (Optional)
• Interface USB-HID: Compatible with USB 1.1 interface or higher.
• UART: Transmission speed range 1200-115200 bps
• Work Environment Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C
• Operational Humidity: 5% to 95% Relative (condensation)

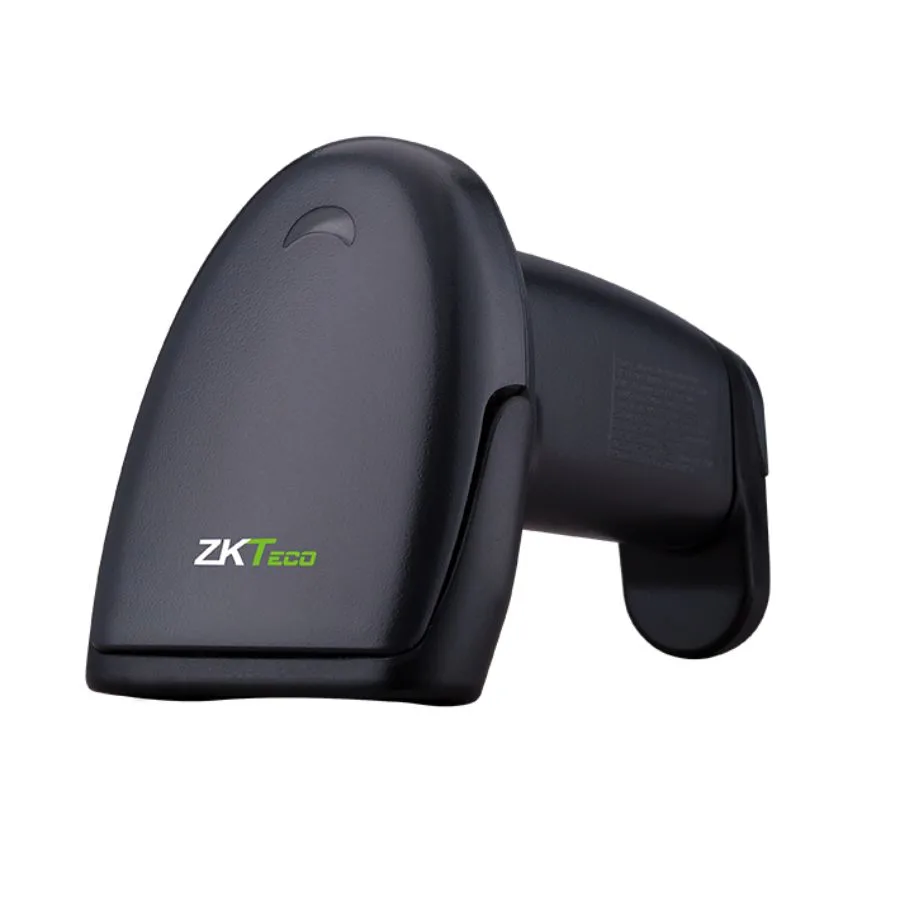

Technical Specifications for ZKB102:

• Kind: 32-bit red light CCD scanner.
• Types of Bar Code: EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE-128, CODE-93, RSS-Standard, CODE-39, Interleaved 2/5, Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, M: YES, MSI-PLESSEY, CODE-BAR, CODE-11, etc.
• Reading Depth: Maximum 500mm (with 0.5mm bar code density in tests)
• Reading Angle: Vertical: 60°, Horizontal: 60°
• Precision: >= 2mil, easy identification of 3mil codes
• Decoding Speed: 400 times/second (150% higher than common CCD readers)
• Decoding Error Rate: 1/3 million
• Electrostatic Discharge Rate: Download with Contact: 9KV, Air Download: 15KV
• Anti-Fall Protection: 1.8m fall-proof
• Dimensions: 175mm x 72mm x 100mm
• Energy Voltage: 4.5-5.5V DC
• Operating Current: 80mA
• Current at Rest: 55mA
• Peak Current: 120mA
• Ultra-low Energy Consumption: <1mA (in suspended mode)
• Interface USB-HID: Compatible with USB 2.0 interface or higher.
• UART: Transmission speed range 2400-115200 bps
• Work Environment Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +70°C
• Operational Humidity: 20% to 95% Relative (non-condensing)
