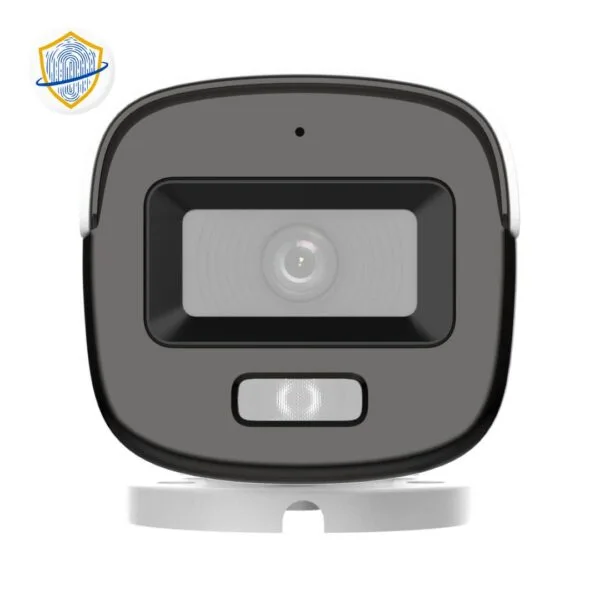

Camera Specifications

Image Sensor

• Resolution: 3K CMOS
• Signal System: PAL/NTSC

Resolution and Frame Rate

• TVI:
  • 3K @20 fps
  • 4 MP @25 fps/30 fps
  • 1080p @25 fps/30 fps
• AHD:
  • 5 MP @20 fps
  • 4 MP @25 fps/30 fps
• CVI: 4 MP @25 fps/30 fps
• CVBS: PAL/NTSC

Min. Illumination

• 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light

Shutter Time

• PAL: 1/25 s to 1/50,000 s
• NTSC: 1/30 s to 1/50,000 s

Lens

• Fixed Focal Lens: 2.8 mm, 3.6 mm

Field of View (FOV)

• 2.8 mm Lens:
  • Horizontal: 110°
  • Vertical: 60°
  • Diagonal: 143°
• 3.6 mm Lens:
  • Horizontal: 94°
  • Vertical: 50°
  • Diagonal: 112°

Lens Mount

• M12

Light Alarm

• Solid Light Alarm (White Light)

Day & Night

• ICR (Infrared Cut Filter Removal)

WDR (Wide Dynamic Range)

• Digital WDR

Angle Adjustment

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 20 m

Smart Supplement Light

• Yes

Image Parameters

• White Light:
  • Auto/Off
  • Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC (Automatic Gain Control): Yes
• Day/Night Mode: Auto
• White Balance: Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode: HLS; DWDR; BLC; HLC; Global
• Noise Reduction: 2D DNR
• Language: English

Function

• Smart IR
• Brightness Adjustment
• Sharpness Adjustment
• AGE
• Anti-Banding

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio In: Built-in mic

General

• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Power: 12 VDC ± 25%, max. 3.9 W
• Protection Level: IP67
• Material:
  • Front cover: Plastic
  • Main body: Metal
• Communication: HIKVISION-C
• Dimension: 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Weight: Approx. 400 g (0.89 lb.)
