Description
| Features | Details |
|---|---|
| Band | HF/50MHz |
| Power | 100W |
| SDR Circuit Configuration | Emphasizes Receiving Performance, uses high-resolution A/D converter and FPGA from YAESU high-end SDRs |
| RF Front-End | Powerful, enables Phenomenal Multi-Signal Receiving Characteristics |
| Characteristics | – RMDR: 113dB+ – BDR: 127dB+ – 3rd IMDR: 102dB+ – TX Phase Noise: -143dBc/Hz |
| Band-Pass-Filters | Dedicated for amateur bands to eliminate out-of-band unwanted signals |
| Automatic Antenna Tuner | Built-in with 100 channel memory |
| QRM Rejection | Enabled by Dual-core 32-bit high-speed floating decimal point DSP |
| Speaker System | AESS (Acoustic Enhanced Speaker System) with SP-40 speaker for High-fidelity audio output |
| Display | High Resolution 4.3-inch TFT Color Touch Panel |
| 3DSS | Real-time 3-Dimensional Spectrum Stream presentation |
| VMI | VFO Mode Indicator displaying the current operating mode |
| PRESET Mode | Designed for FT8 operation |

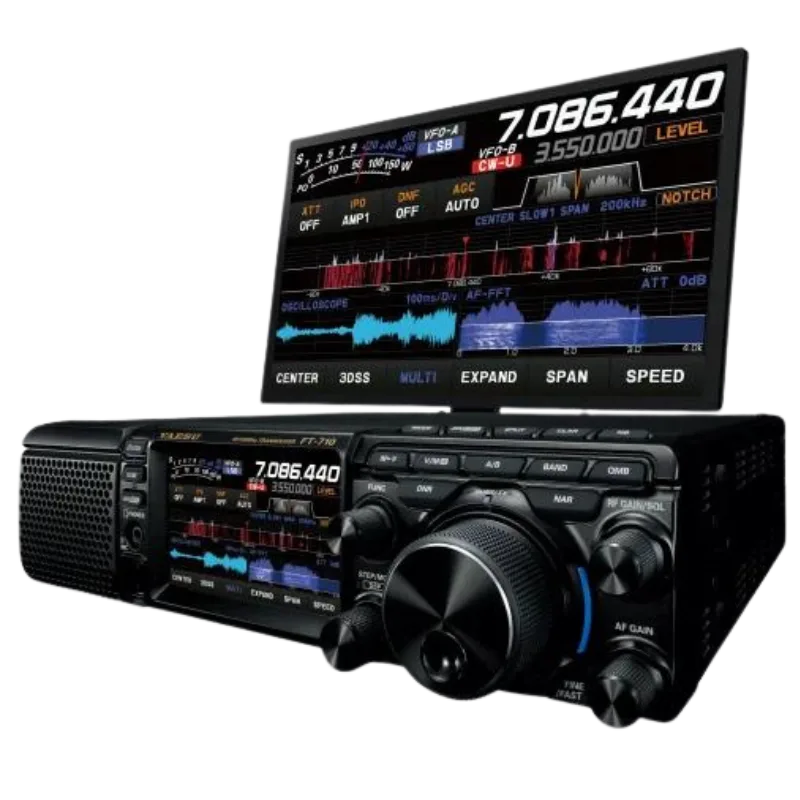

| Ports | External Display terminal (DVI-D), Two (2) USB Ports (Type-A and Type-B), SD Memory Card Slot |
| Antenna Tuner Support | Supports the FC-40 Auto Antenna Tuner |
| Remote Operation | Possible with Network Remote Control System (Available in the near future) |
| Supplied Accessories | External Speaker SP-40, Microphone SSM-75E, DC Power Cable w/Fuse, Spare Fuse, Operating Manual |
| Frequency Ranges | RX: 30kHz – 75MHz (Operating), TX: 1.8MHz – 50MHz (Amateur bands only) |
| Modulation Types | A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM) |
| Frequency Stability | ±0.5ppm (after 1 minute @ +32°F to +122°F / 0°C to +50°C) |
| Supply Voltage | DC 13.8V ±15% |
| RF Power Output | 5W – 100W (5W – 25W : AM Carrier) |
| Dimensions (W x H x D) | 9.4″ x 3.1″ x 9.7″ (239 x 80 x 247mm) |
| Weight (Approx.) | 9.92 lbs (4.5kg) |
