Description

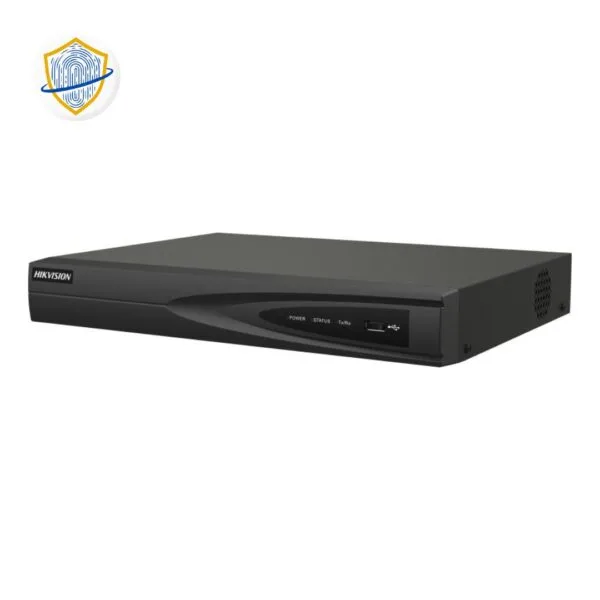

Motion Detection and Video Analysis System

Motion Detection and Analysis

• Motion Detection 2.0: Incorporates advanced motion detection technology.
• Human/Vehicle Analysis: Recognizes and analyzes human and vehicle movements.

Video and Audio Inputs

• IP Video Input: 4-ch
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 80 Mbps

HDMI and VGA Output

• HDMI Output:
  • 1-ch, 4K (4096 x 2160)/30 Hz
  • 4K (3840 x 2160)/30 Hz
  • 2K (2560 x 1440)/60 Hz
  • 1920 x 1080/60 Hz
  • 1600 x 1200/60 Hz
  • 1280 x 1024/60 Hz
  • 1280 x 720/60 Hz
  • HDMI/VGA simultaneous output
  • 1-ch, 4K（4096×2160）/30Hz
  • 4K (3840×2160) /30Hz
  • 2K（2560×1440）/60Hz
  • 1920×1080/60Hz
  • 1600×1200/60Hz
  • 1280×1024/60Hz
  • 1280×720/60Hz
  • HDMI/VGA simultaneous output
  • 1-ch, 4K (3840 × 2160)/30Hz
  • 1920 × 1080p/60Hz
  • 1600 × 1200/60Hz
  • 1280 × 1024/60Hz
  • 1280 × 720/60Hz
  • 1024 × 768/60Hz
  • HDMI/VGA simultaneous output
  • 1-ch, 4K（4096×2160）/30Hz
  • 4K (3840×2160) /30Hz
  • 2K（2560×1440）/60Hz
  • 1920×1080/60Hz
  • 1600×1200/60Hz
  • 1280×1024/60Hz
  • 1280×720/60Hz
  • HDMI/VGA simultaneous output
• VGA Output:
  • 1-ch, 1920 × 1080p/60Hz
  • 1600 × 1200/60Hz
  • 1280 × 1024/60Hz
  • 1280 × 720/60Hz
  • 1024 × 768/60Hz
  • HDMI/VGA simultaneous output
  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz
  • 1-ch, 1920 × 1080p/60Hz
  • 1600 × 1200/60Hz
  • 1280 × 1024/60Hz
  • 1280 × 720/60Hz
  • 1024 × 768/60Hz
  • HDMI/VGA simultaneous output
  • 1-ch, 1920 × 1080/60 Hz
  • 1280 × 1024/60 Hz
  • 1280 × 720/60 Hz
  • 1-ch, 1920*1080/60Hz
  • 1280*1024/60Hz
  • 1280*720/60Hz
  • HDMI/VGA simultaneous output

Audio Features

• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding Capabilities

• Decoding Format: H.265+,H.265,H.264+,H.264
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback: 4-ch

Network Connectivity

• Remote Connection: 32
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power and General Information

• PoE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power Supply: 48 VDC, 1.35 A
• Power Consumption: ≤ 10 W (without HDD, and PoE off)
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
