Description

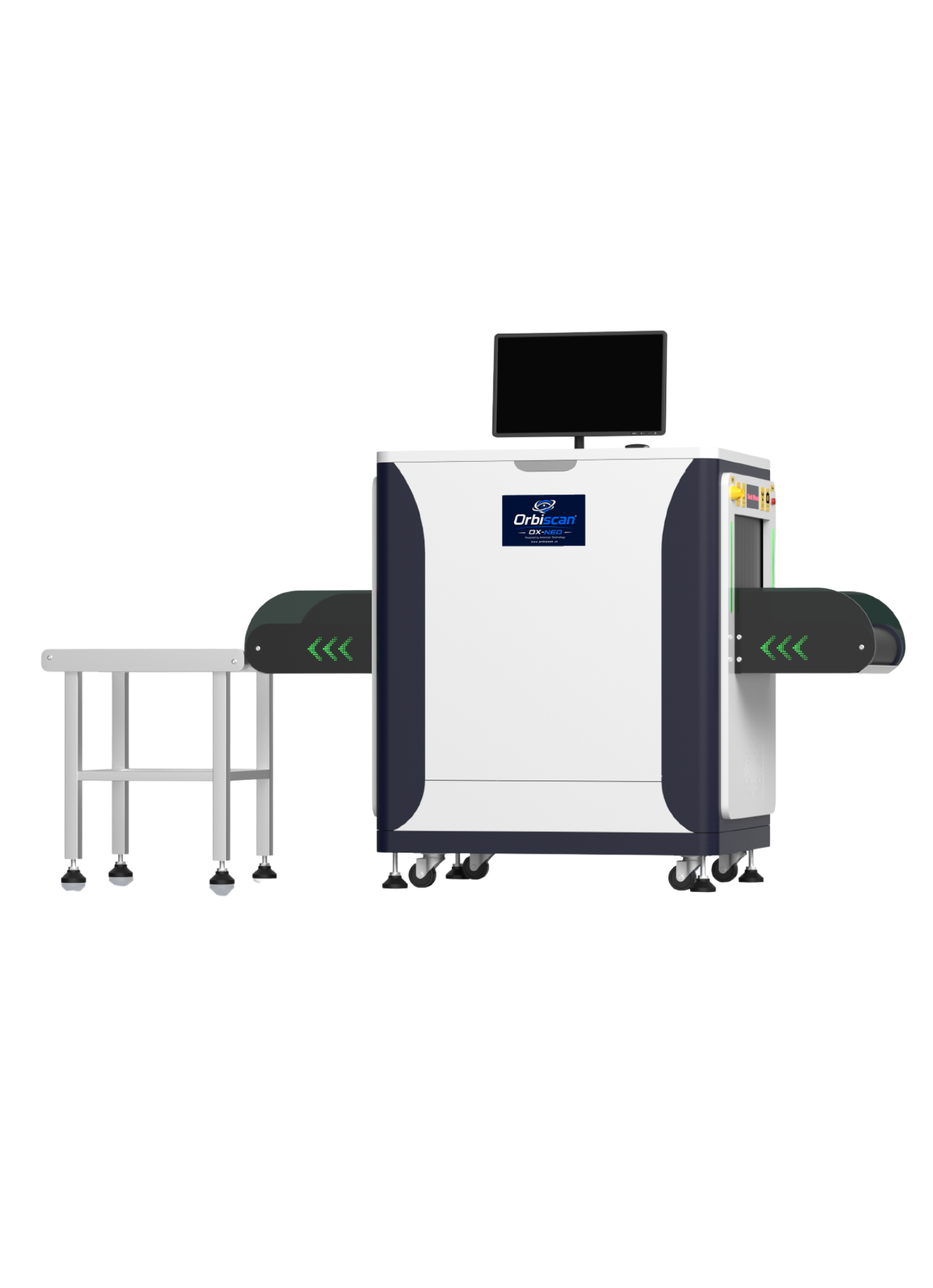

Orbiscan OX-NEO X-Ray Baggage Scanner in Rwanda

The Orbiscan OX-NEO X-Ray Baggage Scanner is a professional X-ray security inspection system designed for reliable screening of luggage, handbags, parcels, and personal belongings at security checkpoints. Featuring a 500 × 300 mm inspection tunnel, advanced X-ray imaging technology, high-resolution image processing, and intelligent conveyor operation, the OX-NEO supports efficient security screening in demanding environments.

Available through Kigali Smart Solutions Ltd in Kigali, Rwanda, the Orbiscan OX-NEO is suitable for government buildings, corporate offices, hotels, public facilities, VIP security checkpoints, and high-security event venues.

With its modern exterior design, intuitive controls, and professional inspection capabilities, the OX-NEO is an effective solution for organizations looking for an X-ray baggage scanner in Rwanda.

Technical Specifications

Specification	Details
Brand	Orbiscan
Model	OX-NEO
Product Type	X-Ray Baggage Inspection System
Tunnel Size	500 × 300 mm
Product Dimensions	1765 × 800 × 1180 mm
Package Dimensions	1865 × 850 × 1330 mm
Net / Gross Weight	280 / 330 kg
X-Ray Tube Voltage	100 / 140 / 160 kV
X-Ray Tube Current	0.2–1.2 mA, Adjustable
X-Ray Leakage	≤1 μGy/h at 5 cm
Detector	L-Type Photodiode Detector Array
Maximum Conveyor Load	150 kg
Conveyor Speed	Approximately 0.22 m/s
Conveyor Height	720 mm
Steel Penetration	13–38 mm; 15–40 mm typical (brochure values)
Wire Resolution	40 AWG (0.0787 mm); 38 AWG Typical
Spatial Resolution	Horizontal and Vertical 1.0 mm
Image Storage	More Than 500,000 Images
Image Display	7 Colors / 4096 Grey Levels
Image Zoom	Up to 64×
Monitor	19-Inch, 1280 × 1024
Operating System	Windows 7 English Version
Power Consumption	Less Than 0.5 kW
Power Supply	110–240 VAC, 50/60 Hz ±3 Hz
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Operating Humidity	5–95%, Non-Condensing
Optional CCTV Integration	Supported

Key Features of Orbiscan OX-NEO

Advanced X-Ray Baggage Inspection

The Orbiscan OX-NEO provides detailed X-ray images to assist security personnel in inspecting luggage, parcels, and carried items without opening them.

Its L-type photodiode detector array and advanced image-processing software support the inspection of different materials and objects inside baggage.

500 × 300 mm Inspection Tunnel

The scanner features a 500 mm wide × 300 mm high inspection tunnel, suitable for screening small and medium-sized bags, handbags, parcels, documents, and personal belongings.

Advanced Image Processing and Enhancement

The integrated X-ray imaging software supports:

• High, low, and super penetration imaging
• Organic and inorganic material display
• Seven-color imaging
• 4096 grayscale levels
• Up to 64× adjustable image zoom
• Image recall and storage
• Image marking and diagnostics
• User, image, and inspection log management

These features help operators examine scanned items more effectively.

Explosives and Narcotics Inspection Assistance

The OX-NEO brochure highlights enhanced image analysis that assists operators in identifying potential explosives and narcotics.

This capability supports professional security inspection but does not replace trained operator assessment or additional detection procedures.

3-Inch Intelligent Tunnel Display

An integrated 3-inch intelligent tunnel display provides real-time tunnel and operating information to support convenient scanner operation.

Directional LED Arrow Indicators

Built-in directional LED indicators display conveyor direction and operating status, helping operators manage baggage movement through the scanner.

High-Capacity Conveyor System

The OX-NEO supports a maximum conveyor load of 150 kg and operates at approximately 0.22 m/s.

Bidirectional scanning allows flexible handling of baggage during security screening.

Low X-Ray Leakage Design

The system incorporates X-ray shielding technology to minimize radiation leakage.

The manufacturer’s brochure specifies an X-ray leakage dose of ≤1 μGy/h measured at 5 cm.

Optional CCTV Integration

Optional CCTV and NVR integration can support additional monitoring of baggage inspection operations.

Professional Customization and Connectivity

The OX-NEO supports selected customization and connectivity functions, including:

• Panel and interface customization
• Branding customization
• SDK integration
• Image export
• Custom language support

Applications of Orbiscan OX-NEO in Rwanda

Government Buildings and Public Institutions

Screen handbags, parcels, and personal belongings at controlled entry points in government offices and public facilities.

Corporate Offices and Business Centers

Improve security screening at corporate entrances, executive offices, and commercial facilities.

Hotels and Hospitality Facilities

Support baggage inspection at hotel entrances, reception checkpoints, and designated security areas.

VIP and Diplomatic Security

Inspect carried items and personal belongings at diplomatic facilities, executive offices, and controlled-access locations.

Events and Conference Venues

Provide baggage inspection at conferences, exhibitions, and high-security events.

Mailrooms and Parcel Inspection

Screen incoming documents, packages, and parcels at commercial and institutional mailrooms.

Why Choose Orbiscan OX-NEO?

The Orbiscan OX-NEO X-Ray Baggage Scanner combines advanced image processing, convenient operation, and professional inspection capabilities in one security screening solution.

Its compact tunnel configuration, intelligent display, directional indicators, and optional system integration make it suitable for organizations requiring reliable baggage inspection at controlled entrances.

Buy Orbiscan OX-NEO X-Ray Baggage Scanner in Kigali, Rwanda

Looking for an X-ray baggage scanner in Kigali, a security inspection machine in Rwanda, or professional security screening equipment for your organization?

Kigali Smart Solutions Ltd supplies security inspection equipment and related security solutions for commercial businesses, government institutions, security companies, and organizations across Rwanda.

Contact Kigali Smart Solutions Ltd for product pricing, availability, technical information, and a quotation for the Orbiscan OX-NEO X-Ray Baggage Scanner.

Product Brochure: OX-NEO
