Description

Technical Specifications

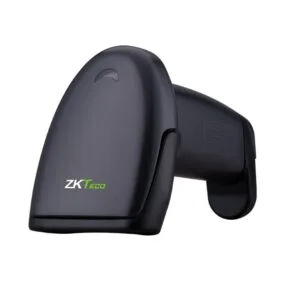

Model Name: ZKB201

General

• Dimensions: 175mm × 72mm × 100mm
• Weight: 160g (without cable)
• Cable Length: 1.8m
• Interface Type: RJ-45 Standard USB (Full Speed, USB 2.0)
• Material: ABS+PC
• Color: Black
• User Indicators: LED, buzzer

Scanning Performance

• Light Source: Lighting – White LED; Focusing – Green LED; Wavelength – 525nm
• Image Sensor: 640×480 CMOS
• Processor: ARM 32-bit
• Startup Time: 4s
• Analytical Ability: 1D: ≥5mil; 2D: ≥8.7mil, PCS90%
• Depth of Focus: 5mil: 50130mm; 13mil: 50270mm
• Scanning Mode: Manual scanning, automatic scanning
• Reading Angle: Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater)
• Field of View: Horizontal 40°, Vertical 30°
• Motion Tolerance: 2.3m/s
• Power: 160mA, 5V DC
• Light Levels: 70000Lux
• Decode Capabilities:
  • 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded
  • 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Environmental Characteristics

• Operating Temperature: -20°C to 55°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection: IP54
• Drop Test: 1.8m, 100 times
• High and Low-Temperature Test: Works properly for 30 minutes under simulation of temperatures of -20°C and 60°C
• Transport Vibration Test: 10 hours @ 125 RPM
