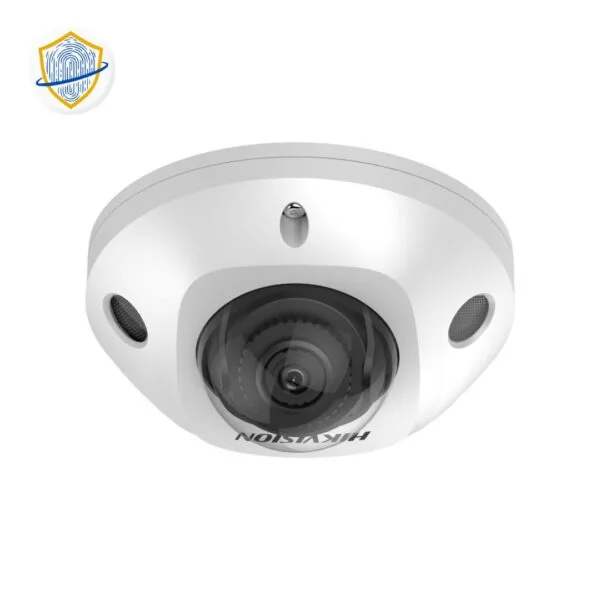

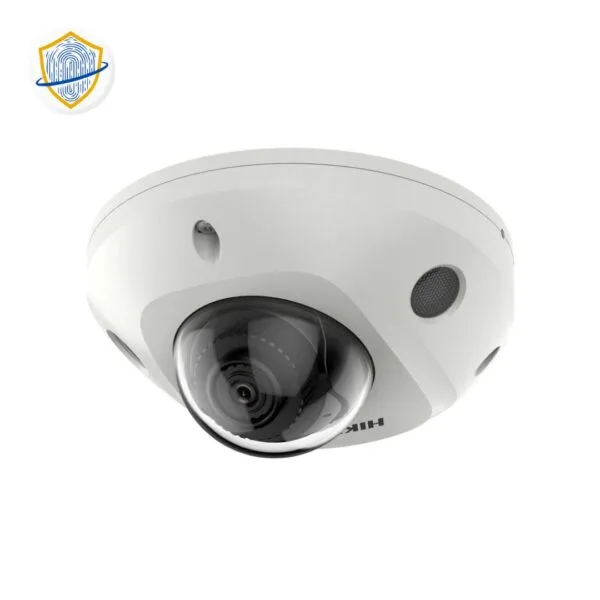

Description

Camera Specifications:

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 57°, Diagonal FOV 125°
  • 4 mm: Horizontal FOV 84°, Vertical FOV 46°, Diagonal FOV 98°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• Depth Of Field:
  • 2.8 mm: 1.6 m to ∞
  • 4 mm: 2.1 m to ∞

DORI:

• 2.8 mm:
  • Detection: D: 47 m, O: 19 m, R: 9 m, I: 5 m
• 4 mm:
  • Detection: D: 57 m, O: 22 m, R: 11 m, I: 6 m

Illuminator:

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video:

• Main Stream:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: Supported under certain settings
• Video Compression: Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream

Audio:

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network:

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication, TLS 1.1/1.2, WSSE and digest authentication

Network Storage:

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR) (Together with high-end Hikvision memory card, memory card encryption and health detection are supported.)

Client:

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in Required Live View: IE 10, IE 11
• Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Local Service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image:

• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
• Built-In Microphone: Yes
• Audio: 1 input (line in), 1 output (line out), 1 alarm input, 1 alarm output
• Reset Key: Yes

Event:

• Basic Event: Motion detection (support alarm triggering by specified target types), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection

Deep Learning Function:

• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting, support alarm triggering by specified target types (human and vehicle)

General:

• Power:
  • 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
• Material: Base: aluminum, cover: plastic
• Dimension: Ø110 mm × 57.4 mm (Ø4.3″ × 2.3″)
• Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
• Weight: Approx. 375 g (0.8 lb.), With Package Weight: Approx. 620 g (1.4 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: Supports 33 languages
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Approval:
  • EMC: FCC, CE-EMC, RCM, IC, KC
  • Safety: UL, CB, CE-LVD, LOA
  • Environment: CE-RoHS, WEEE, Reach
  • Protection: IP67, IK08
